With intelligent Auto Humidity control G3 allows maximum moisture while ensuring rain out in the tubing is not an issue.
The G3 series has a pre-heat feature to warm your humidifier water up for ultimate comfort.
Multi-stage noise reduction technology is used to ensure sound performance is under 26 dB.
Intended Use

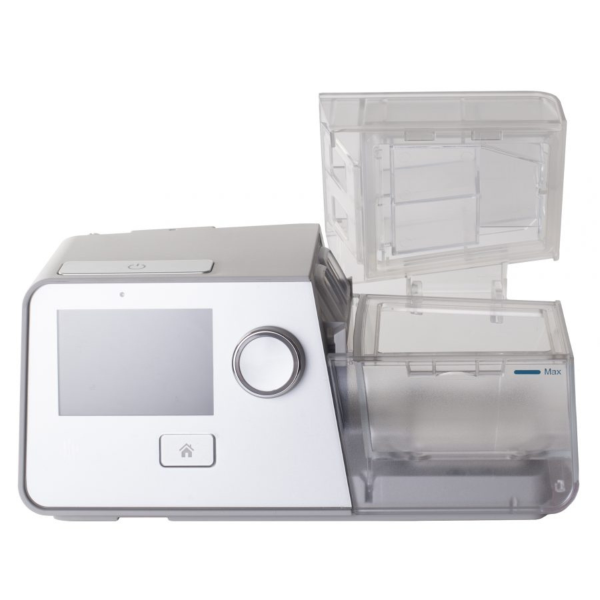

The Luna G3 BPAP 25A is a Bi-level PAP (Bi-level Positive Airway Pressure) device designed for the treatment of adult Obstructive Sleep Apnea (OSA). The integrated humidifier is indicated for the humidification and warming of air from the flow generator device. These devices are intended for single-patient use by prescription in the home or hospital/institutional environment on adult patients. It is to be used on patients >66 lbs./30 kg for whom CPAP therapy has been prescribed. The system can deliver bi-level therapy or auto bi-level therapy.
Contraindications
If you have any of the following conditions, tell your doctor before using this device:
The following side effects may occur during treatment:
- Dryness of the mouth, nose and throat
- Abdominal bloating
- Ear or sinus discomfort
- Eye irritation
- Skin irritation due to the use of a mask
- Chest discomfort
Specifications
Device Size
Dimensions (L x W x H): 265 mm × 145 mm × 114 mm
Weight: 1.7 kg
Water capacity: To maximum fill line 360 mL
Product Use, Transport and Storage
Operation Transport
Storage
Heated Humidifier
Humidifier Settings: off, Auto, 1 to 5 (95 ̊F to 154.4 ̊F / 35°C to 68°C)
Humidifier Output: No less than 15 mg H2O/L
Environmental Conditions: Maximum airflow, 35°C, 15% relative humidity
Maximum Operating Pressure: 40 cmH2O
Pressure Drop with Humidifier: < 0.4 cmH2O at 60 LPM flow
Maximum Delivered Gas Temperature: ≤ 43°C
Mode of Operation
Continuous
Work Mode
CPAP, AutoCPAP, S, AutoS
SD Card
The SD card can record patient data and fault information
AC Power Consumption
100V - 240 V ～, 50Hz / 60 Hz, 2 A
Device offer to Heated Tubing Communications Port
24 V 18 W
Type of Protection Against Electric Shock
Class II Equipment
Degree of Protection Against Electric Shock
Type BF Applied Part
Degree of Protection Against Ingress of Water
IP22
Pressure Range
4 to 25 cmH2O (in 0.5 cmH2O increments)
Under single fault conditions, ≤ 30 cmH2O for CPAP and AutoCPAP mode, ≤ 40 cm for the rest of the modes.
| Availability | in stock |
|---|---|
| Quantity | No |
| Aircraft Use | N/A |
| Mask Type | No |
| Manufacturer | 3B Products |
| Brand | Luna |
| Dimensions | Dimensions (L x W x H): 265 mm × 145 mm × 114 mm |
| Prescription Required | Yes |
| Data Card | Yes |
| Passover Cool Humidifier | No |
| Ramp | The ramp time ranges from 0 to 60 minutes. |
| Altitude Adjustment | N/A |
| Heated Humidifier | No |
| Warranty | two (2) years |
| Features | N/A |
| Pressure Range | 4-25 cm/H2O |
| Maximum Pressure | 4 to 25 cmH2O (in 0.5 cmH2O increments) |
| Operating Environment | Temperature: 5°C to 35°C (41 ̊F to 95 ̊F) |
| Operating Altitude | Atmospheric Pressure: 760 ～ 1060 hPa |
| Operating Range | Humidity: 15% to 93% Non-condensing |
| Storage Environment | Temperature: -25°C to 70°C (-13 ̊F to 158 ̊F) Humidity: 15% to 93% Non-condensing Atmospheric Pressure: 760 ～ 1060 hPa |
| Sound Level | Sound Power Level < 34 dB, when the device is working at the pressure of 10 cmH2O. |
| Noise Level | N/A |
| Flow Type | N/A |
| Flow Type | N/A |
| Exhalation Relief | No |
| Mask Off Alert | No |
| Included In Box | Bilevel 25A Device<br/>Heated Tubing<br/>AC/DC Power Cord<br/>2 Reusable Filters<br/>SD Card<br/>Carry Bag |
| Software Available | No |
| Machine Type | BiPAP/BiLevel |
| Voltage | No |
| Humidifier Type | No |
| Can Use A Battery | No |
| Power Supply Type | N/A |
| Integrated Battery | N/A |
| Battery Charger | N/A |
| Battery Weight | N/A |
| Battery Duration | N/A |
| AC Input Range | 100V - 240 V ～, 50Hz / 60 Hz, 2 A |
| 220 Voltage | No |
| CPAP 110 Voltage | No |
| DC Output | N/A |
| Power Requirements | N/A |
| Other Information | N/A |
| GTIN | N/A |
| Automatic On/Off | No |
| PreviousBvin | N/A |
| Reference Only | No |
| Parts & Supplies | No |
| Type | N/A |
| Tube Option | N/A |
| Set Up Pack | N/A |
| Optional Features | N/A |
| HCPCS Reimbursement Code | N/A |
| Weight | 3.750000 |
